C++BOLD Example Design: IROD

IROD is a large multiprocessor motherboard.

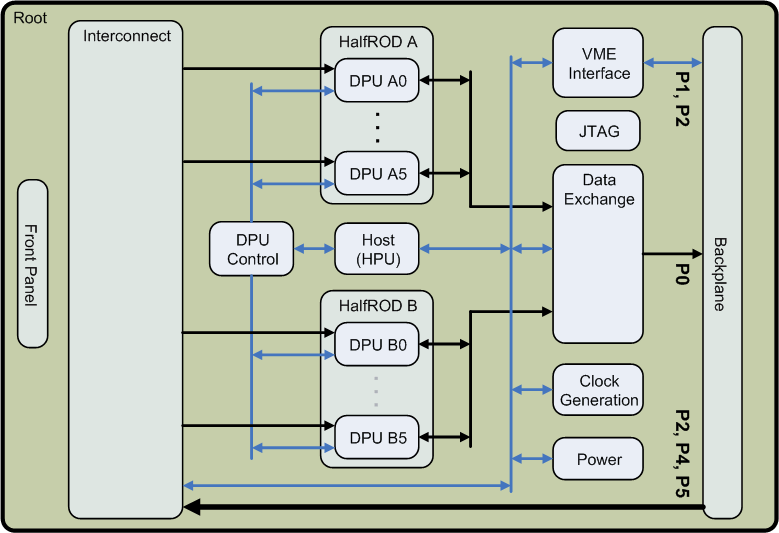

The processors are organized as two HalfROD's, each containing six Data Processing Units (DPU's). A central Host Processing Unit (HPU) initializes and controls the motherboard and DPU's. The HPU and DPU's are all identical Generic Processing Units (GPU's) consisting of a DSP, memory, and FPGA's.

The IROD design presented here provides only connectors for the processing units. The processing units themselves are replaceable daughter cards not included in this design.

The design illustrates:

NB: This design uses a Designator Text File, irod_old_designators.txt, to manually specify some reference designators.
